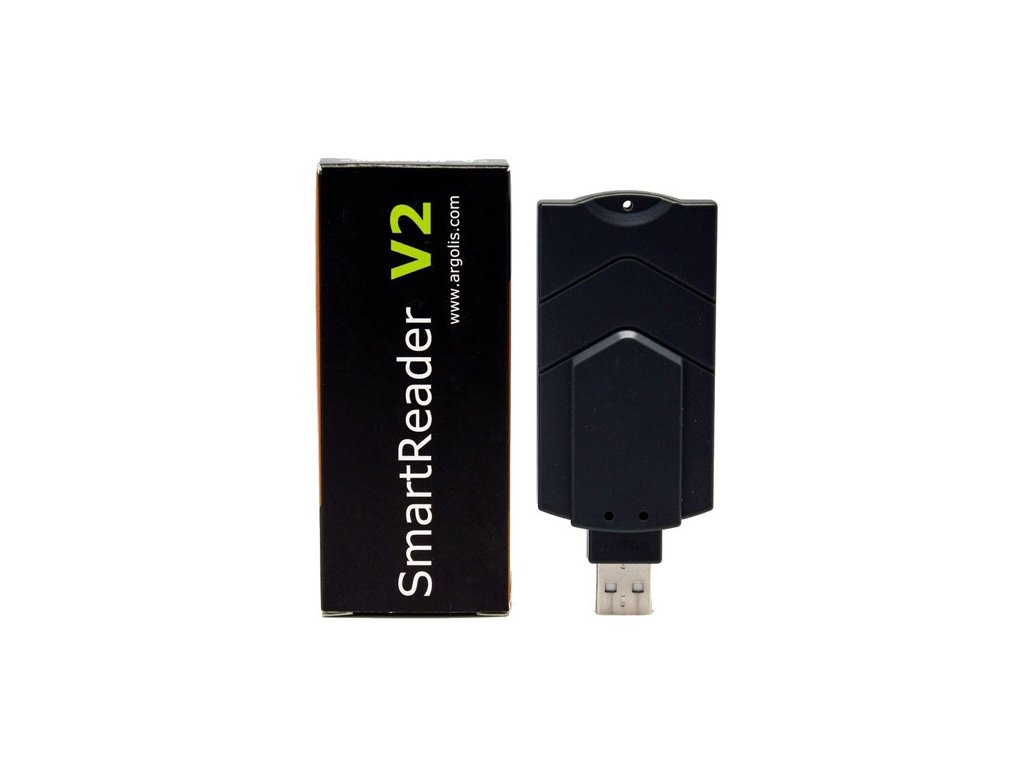

Argolis SmarGo SmartReader V2

Detailní popis produktu

Smargo SmartReaderPlus umožňuje komunikaci s různými typy karet s frekvencemi 3.20, 3.43, 3.69, 4.00, 4.36, 4.80, 5.34, 6.00, 6.86, 8.00, 9.61, 12.0 a 16.0 MHz.

Vlastnosti:

    Powerfull ARM 91 Thumb Processor
    High-performance 32-bit RISC Architecture
    High-density 16-bitInstruction Set
    64 Kbytes, organized in 512Pages of 128 Bytes (Single Plane)
    16 Kbytes Internal High-speed SRAM, Single-cycle Access at Maximum Speed
    Low-power RC Oscillator, 3 to20 MHz On-chip Oscillator and one PLL
    Supports 3.20, 3.43, 3.69,4.00, 4.36, 4.80, 5.34, 6.00, 6.86, 8.00, 9.61, 12.0 and 16.0 MHz for smartcards (T=0 and T=1)
    No switches on programmer to select the desired mode, automatic frequency controll
    5V smartcard support
    Frequency/Baudrate autocalculation and Frequency Generator
    Developer guide available
    Works on all Dreambox Models with USB connection, also on 6 MHz with Dreambox 7025
    Can be cascaded with more SmartReaders (>100) in 1 system using an USB Hub
    Fullspeed USB1.1/ USB2.0
    Com Port via USB
    No power supply or cables required
    True ISO7816
    Upgradable firmware
    Windows driver available
    The Full speed USB communication ensures fast and correct data transfer to the card
    Compatible with PCI-DVB or USB-DVB devices
